AIBC-4
|

AIBC-4

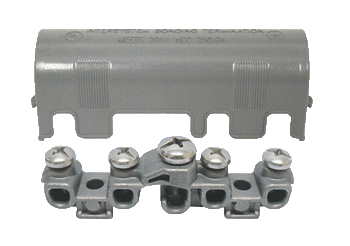

Instersystem Bonding Connector 6 AWG - 2 AWG

  • Zinc die cast construction
  • Designed to connect directly to the grounding electrode conductor providing a common single grounding point location for residential and small commercial facilities
  • Includes 4 taps (14-4 AWG) for solid or stranded conductor that allow for bonding and grounding of communication circuits, radio and television equipment, satellite systems, and CATV circuits
  • Lay-in style lug and integrated mounting holes allow for easy, compact installation
  • Paintable, snap-on cover is impact resistant, UV stabilized, and flame retardant for long outdoor life
  • All hardware is stainless steel for maximum corrosion resistance
  • Meets the requirements of 2011 NEC Article 250.94, “Bonding for Other Systems”
  • Listed to UL 467 for grounding and bonding
L (in.)4.61
W (in.)1.38
H (in.)1.57

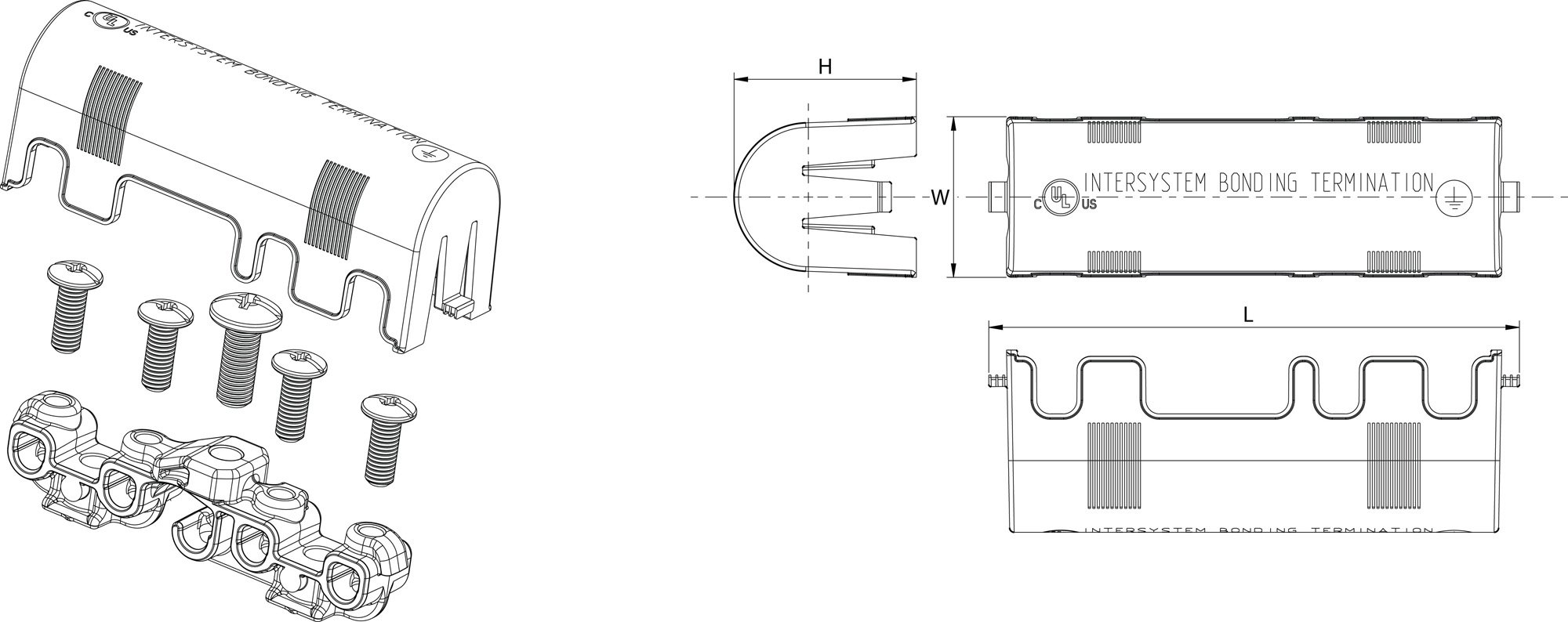

Download Drawing Here

No Downloads Found
