BBLU-6S1-GND
|

BBLU-6S1-GND

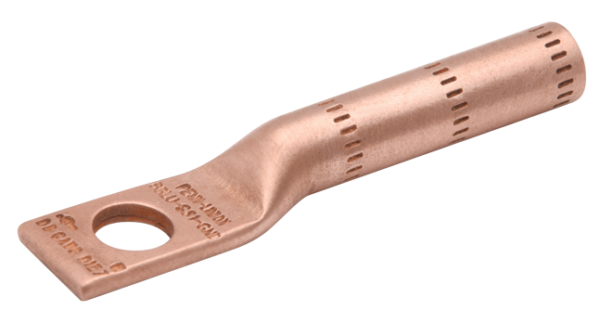

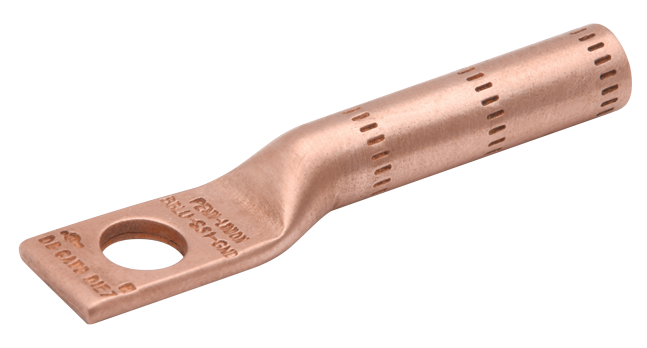

Copper Compression Lug - Long Barrel, One Hole Tongue with Closed Transition

  • Manufactured from high conductivity seamless copper tubing
  • Factory prefilled with copper-based oxide inhibitor
  • Specially designed for grounding applications
  • Beveled entry for easy cable insertion
  • Inspection hole to ensure full cable insertion (size 4 AWG and larger)
  • Compatible with industry standard 12-ton u-dies
  • Connectors are cULus listed:
    • UL486A-B for power applications (90°C)
    • UL467 for grounding, bonding, and direct burial applications in earth or concrete
    • Suitable for use in circuits rated up to 35 kV
    • Connectors are cULus listed with both Penn-Union and Burndy tooling
  • Tin plated finish available by adding suffix “-TN” to the catalog number
Copper Conductor Range6 Sol. /6 Str.
Stud Hole Size1/4
W (in.)0.45
C (in.)0.62
T (in.)0.08
B (in.)1.12
L (in.)2.02
