BSR2B-025-3
|

BSR2B-025-3

Bronze Bus Support Clamp for Copper Cable 6 AWG - 250 kcmil

  • Manufactured from high strength cast copper alloy
  • Designed for mounting a wide range of cable or tube on post or pedestal type insulator
  • Furnished with silicon bronze clamping hardware for corrosion resistance
  • Stainless steel bolts and lock washers furnished for cap mounting (standard)
  • Connector base with six slots
  • For stainless steel base mounting hardware consisting of bolts, nuts, and lock washers, suffix the catalog number with “-BM”
  • For tin plating, suffix the catalog number with “-TN”

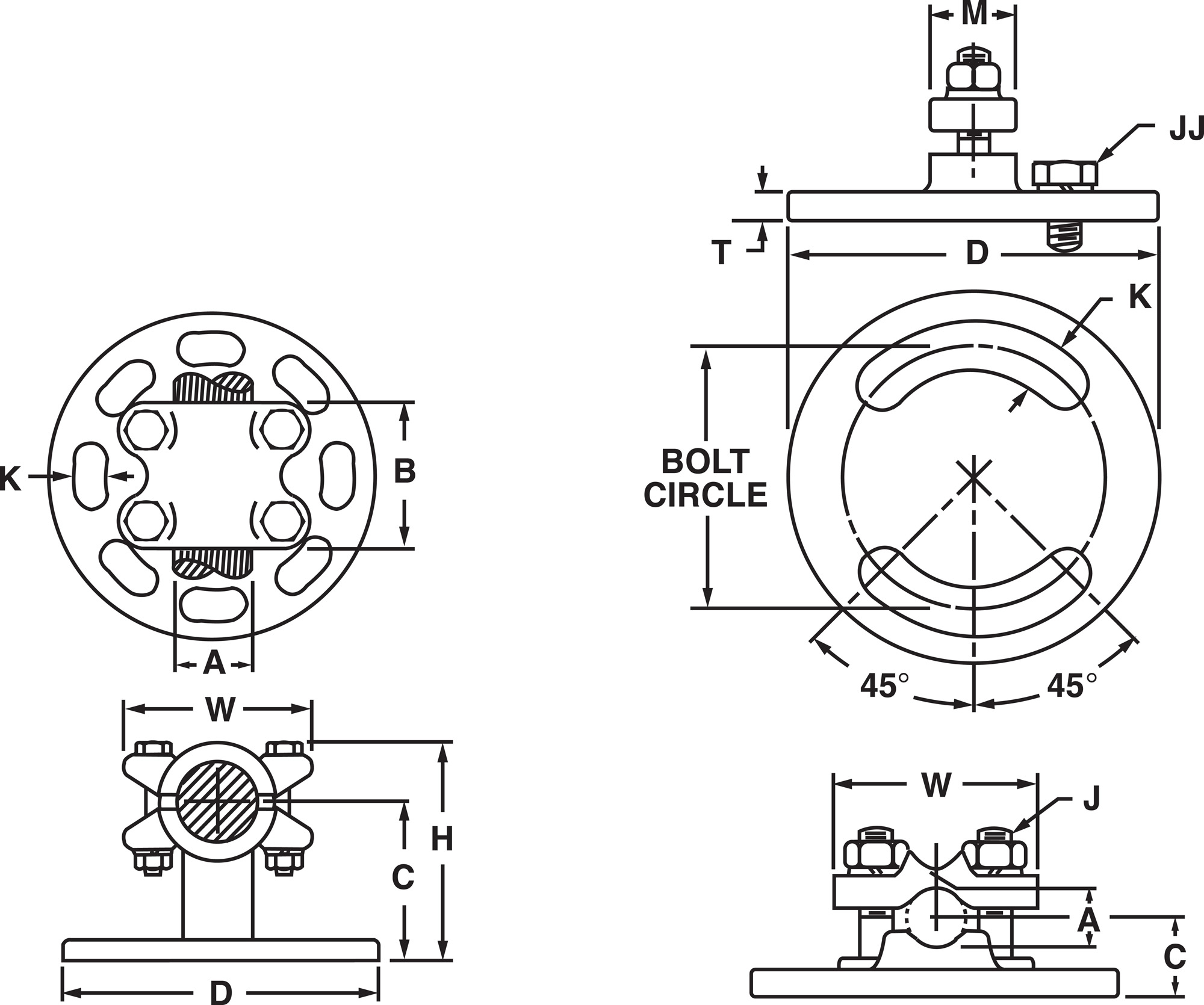

D (in.)4.25
C (in.)0.81
W (in.)2.25
M (in.)1.00
T (in.)0.31
K (in.)-
Slot Width0.56
J (in.)-
Bolt Size3/8"
JJ-
Bolt Size1/2"
