GFXB3-24-S1
|

GFXB3-24-S1

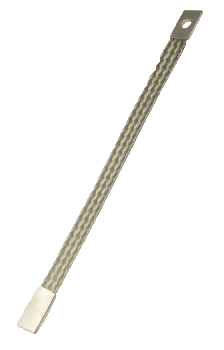

Copper Grounding Flexible Braid Connector 335 AMPERE RATING

  • Manufactured from flexible pure copper for high conductivity
  • Both braid and ferrules are tin plated to protect against corrosion
  • Inside ends of seamless pure copper ferrules are chamfered to prevent strand degradation
  • Ideally suitable for use wherever it is necessary to take up expansion and provide a reliable ground connection
  • More Ordering Information:
    • Sizes/combinations and special drilling can be provided upon request – contact factory
    • If different ferrule dimensions are desired, consult factory
    • For lengths other than 24”, change “-24” in the catalog number to desired length in inches
A (in.)2.00
B (in.)1.50
C (in.)1.00
E (in.)0.13
K (in.)0.75
L (in.)24.00
Download Drawing Here
