KO-R10
|

KO-R10

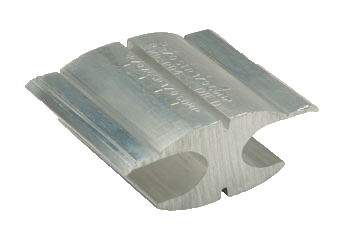

Aluminum Wide Range H-Tap - Double Tab Press-On 1/0 ACSR - 4 AWG

  • Manufactured from high conductivity aluminum
  • Designed for overhead line tap applications with copper (not recommended for copper to copper applications), aluminum, ACSR, and compact conductors
  • In copper to aluminum applications, H-shaped profile with solid barrier provides conductor separation, prevents strand cutting, and minimizes galvanic corrosion
  • Deep indent crimp lines make crimp location clearly visible
  • Bendable tabs secure both run and tap conductors, enabling the user to easily operate installation tool
  • Pre-filled with oxide inhibitor and individually boxed

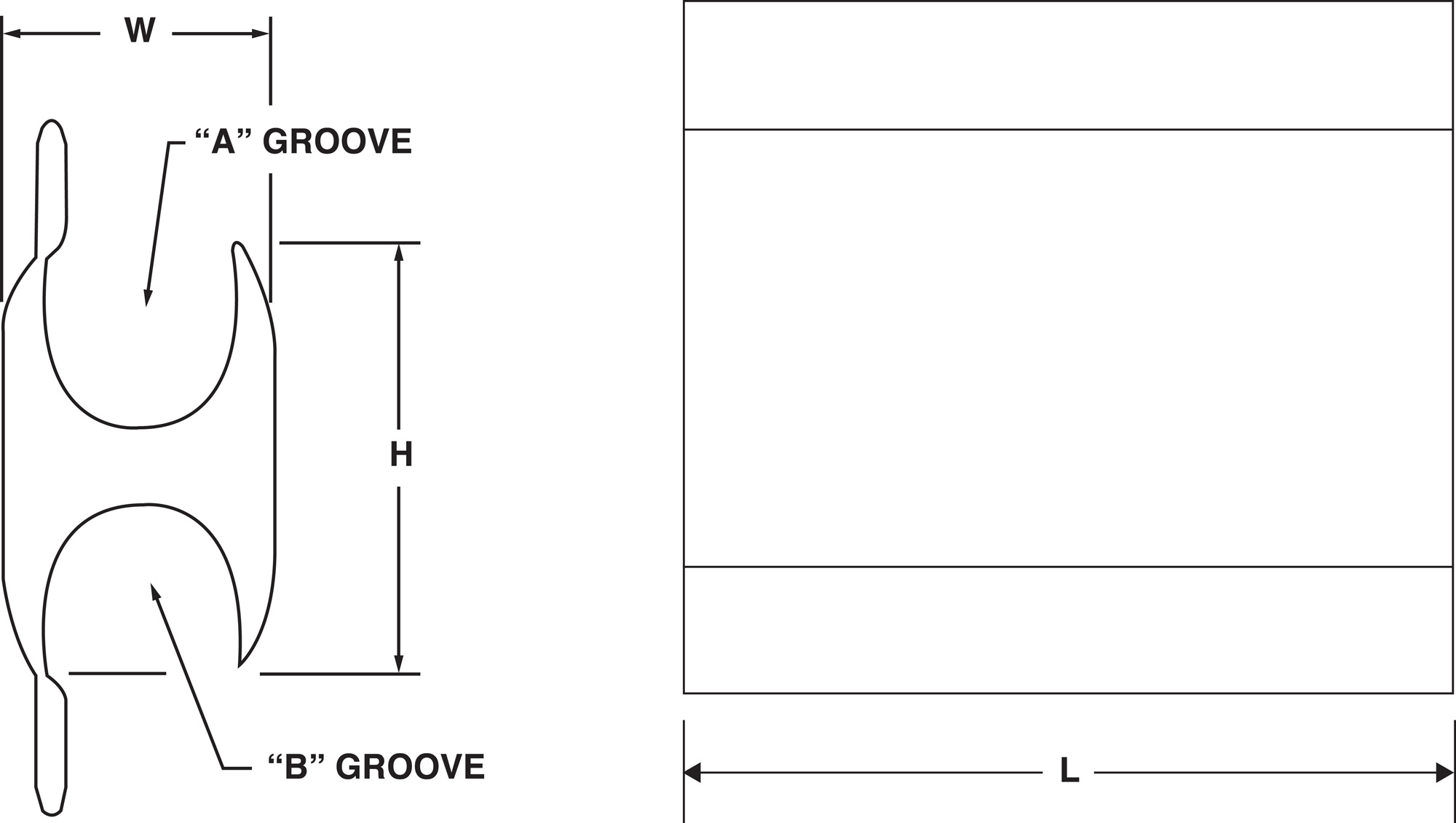

L (in.)1.50
W (in.)0.70
H (in.)1.13
