LA-750-2CND-LT
|

LA-750-2CND-LT

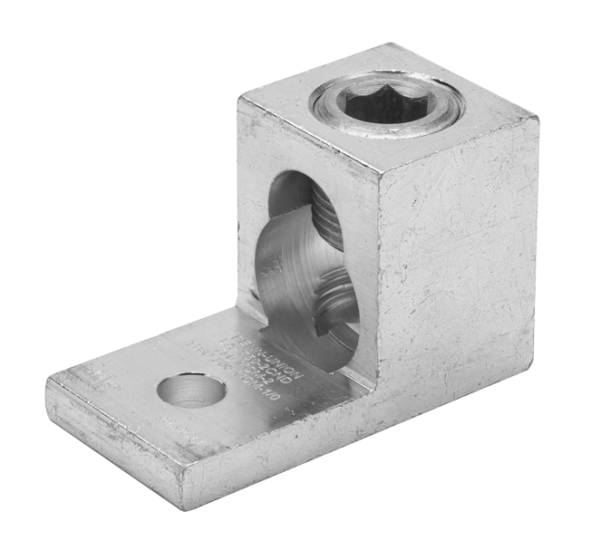

Aluminum Dual Rated Lug - One Hole Tongue with Locking Tab 1/0 AWG-300 kcmil

Aluminum Dual Rated Lugs – One Hole Tongue 2 AWG-750kcmil or 1/0 AWG-300kcmil

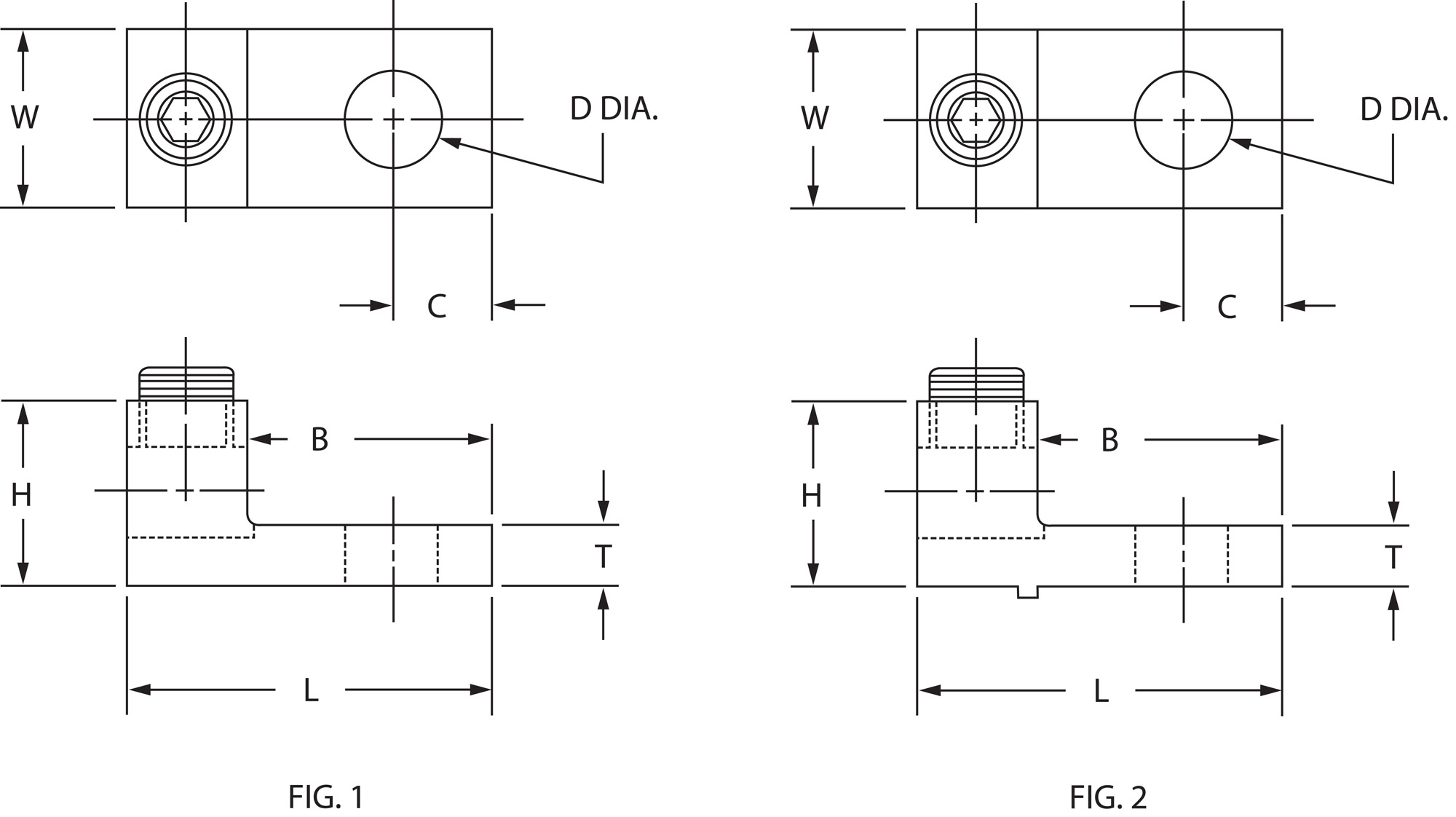

Figure Number2
L (in.)2.81
W (in.)1.38
H (in.)1.81
T (in.)0.31
C (in.)0.62
D (in.)0.41
MTG. Bolt Size3/8
Hex Size1/2
