LL-49764-D-SF
|

LL-49764-D-SF

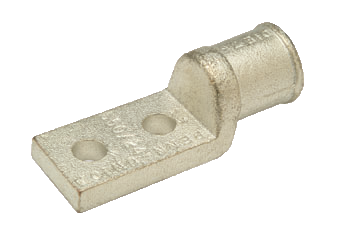

Cast Copper Heavy-Duty Lug for DLO Cable - Two Hole Tongue, Side Formed 275/24

  • Designed for traction motor applications
  • Cast out of pure copper alloy for high conductivity
  • Side formed design allows for conductor offset from mounting surface
  • Electro-tin plated for corrosion resistance
  • Suitable for installation with existing hydraulic crimping tools
  • For blank tongue, add suffix “-U” to the catalog number

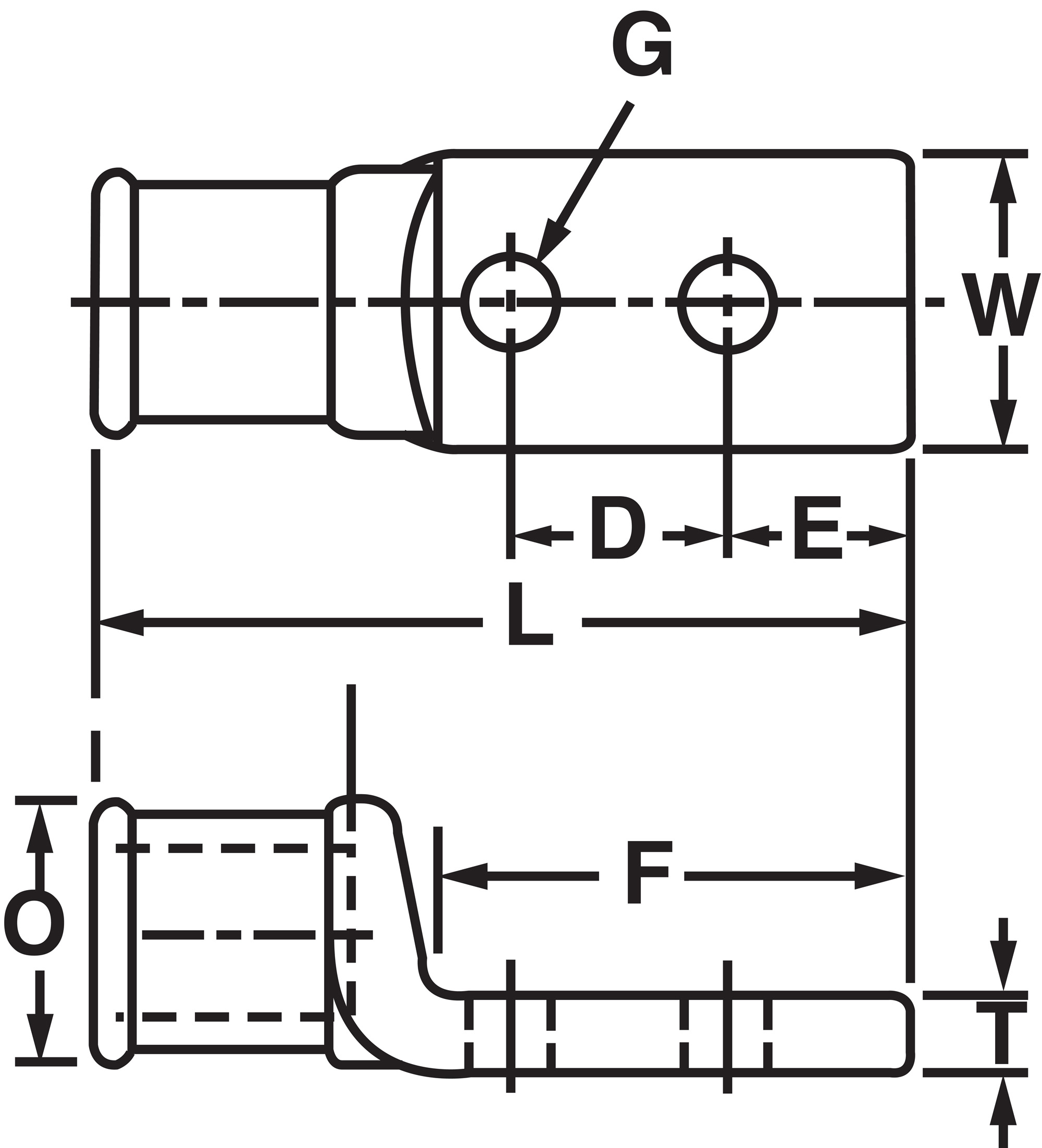

L (in.)3.13
F (in.)2.00
D (in.)1.00
E (in.)0.50
O (in.)0.72
W (in.)0.81
T (in.)0.22
G - Bolt Size3/8"
