P2NL-1/0-2N
|

P2NL-1/0-2N

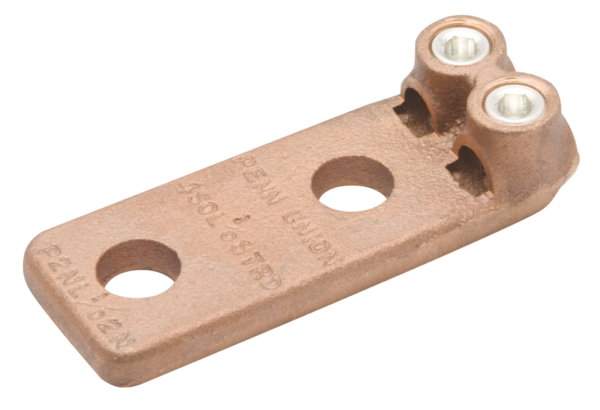

Bronze Terminal Lug for Two Copper Conductors - Two Hole Tongue 8 AWG - 1/0 AWG

  • Manufactured from high strength copper alloy for maximum conductivity and corrosion resistance
  • Used for joining a wide range of copper conductors to equipment pads or bus bars
  • Plated steel set screw provides high strength connection
  • Two-hole mounting pad allows for maximum surface contact in heavy duty applications
  • Annular serrations in conductor grooves provide improved mechanical performance
  • Inspection hole allows for visual confirmation of proper cable insertion
  • Can be furnished electro-tin or silver plated
  • For tin plating, suffix catalog number with “-TN”, “-SV” for silver plating

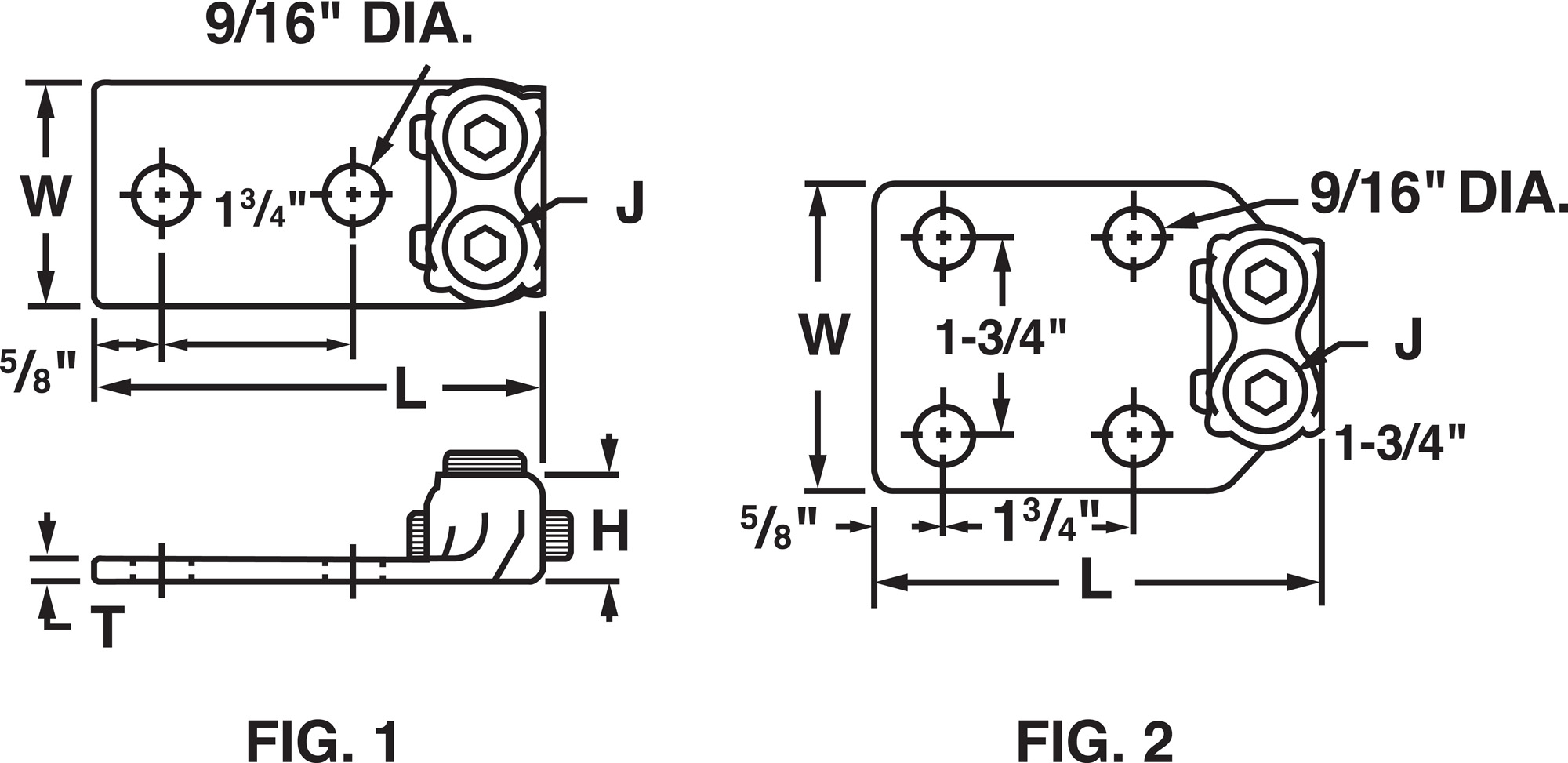

H (in.)0.84
L (in.)3.88
T (in.)0.31
W (in.)1.50
J - Screw Thread1/2"-20
Hex Size1/4"
