PCAA-18
|

PCAA-18

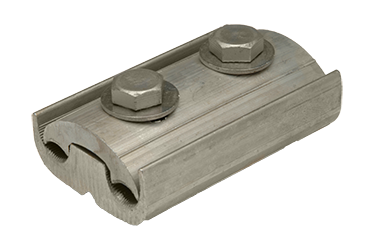

Aluminum Parallel Clamp - Two Bolt 2 AWG - 4/0 AWG (Main & Tap)

  • Manufactured from high strength aluminum extruded alloy
  • For aluminum, copper, ACSR, and AR* conductors
  • Designed for tap and parallel connections
  • Assembled with high strength stainless steel bolts and flat washers
  • Serrated grooves provide increased conductor contact and improve mechanical performance
  • For aluminum to copper applications, it is recommended to install the aluminum conductor above the copper conductor to minimize corrosion
  • For factory applied oxide inhibitor, suffix the catalog number with “-BF”
  • For tin plating, suffix the catalog number with “-TN”
L (in.)3.00
W (in.)1.94
Bolt Size3/8"

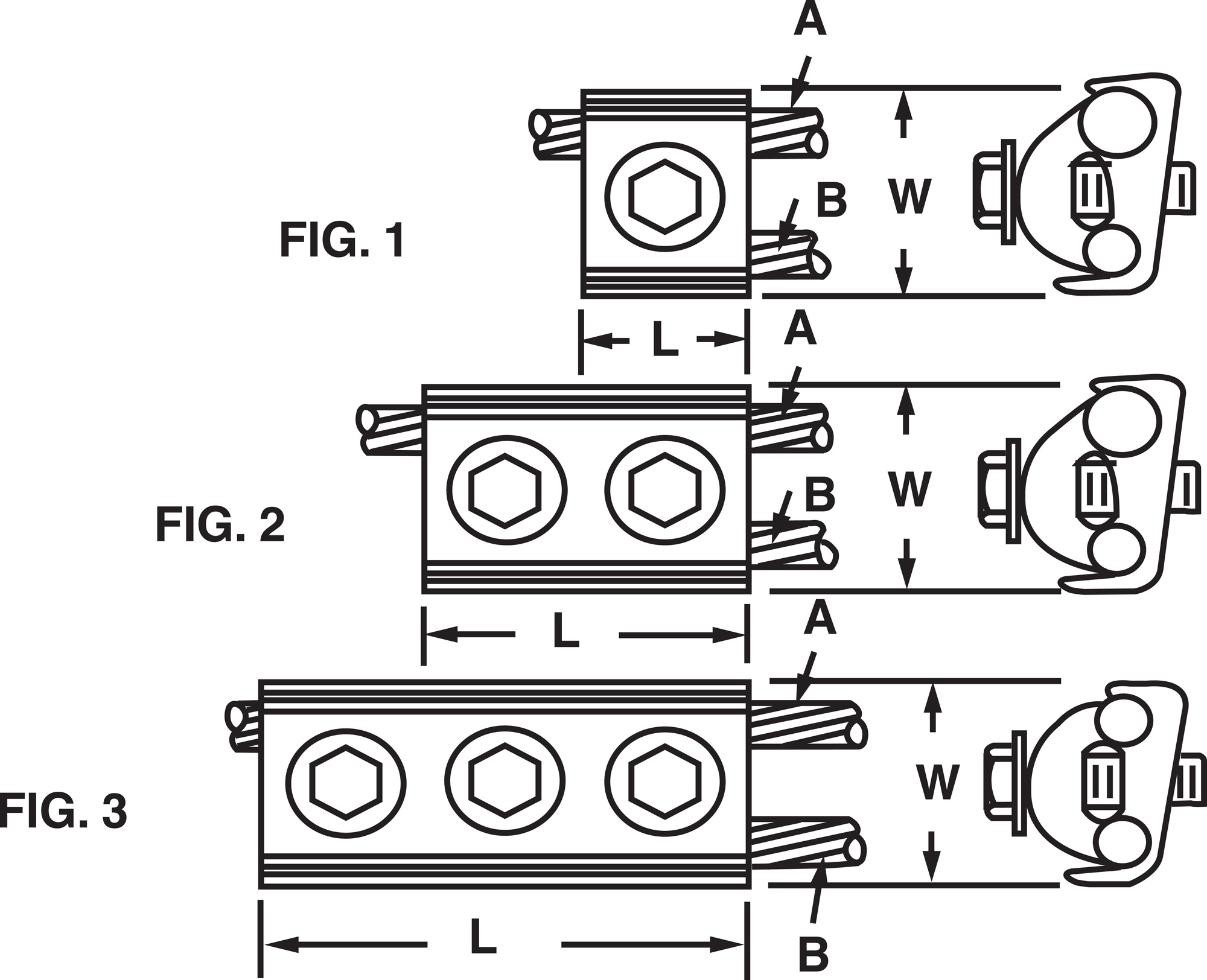

Download Drawing Here
