PNL-1/0
|

PNL-1/0

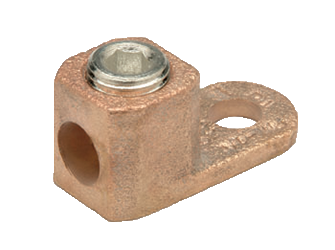

Bronze Terminal Lug for One Copper Conductor - One Hole Tongue 8 AWG - 1/0 AWG

  • Manufactured from high strength copper alloy for maximum conductivity and corrosion resistance
  • Used for joining a wide range of copper conductors to equipment pads or bus bars
  • Plated steel set screw provides high strength connection
  • Flat bottoms allow for complete contact with mounting surface
  • Inspection hole allows for visual confirmation of proper cable insertion
  • Can be furnished electro-tin or silver plated
  • For tin plating, suffix catalog number with “-TN”, “-SV” for silver plating

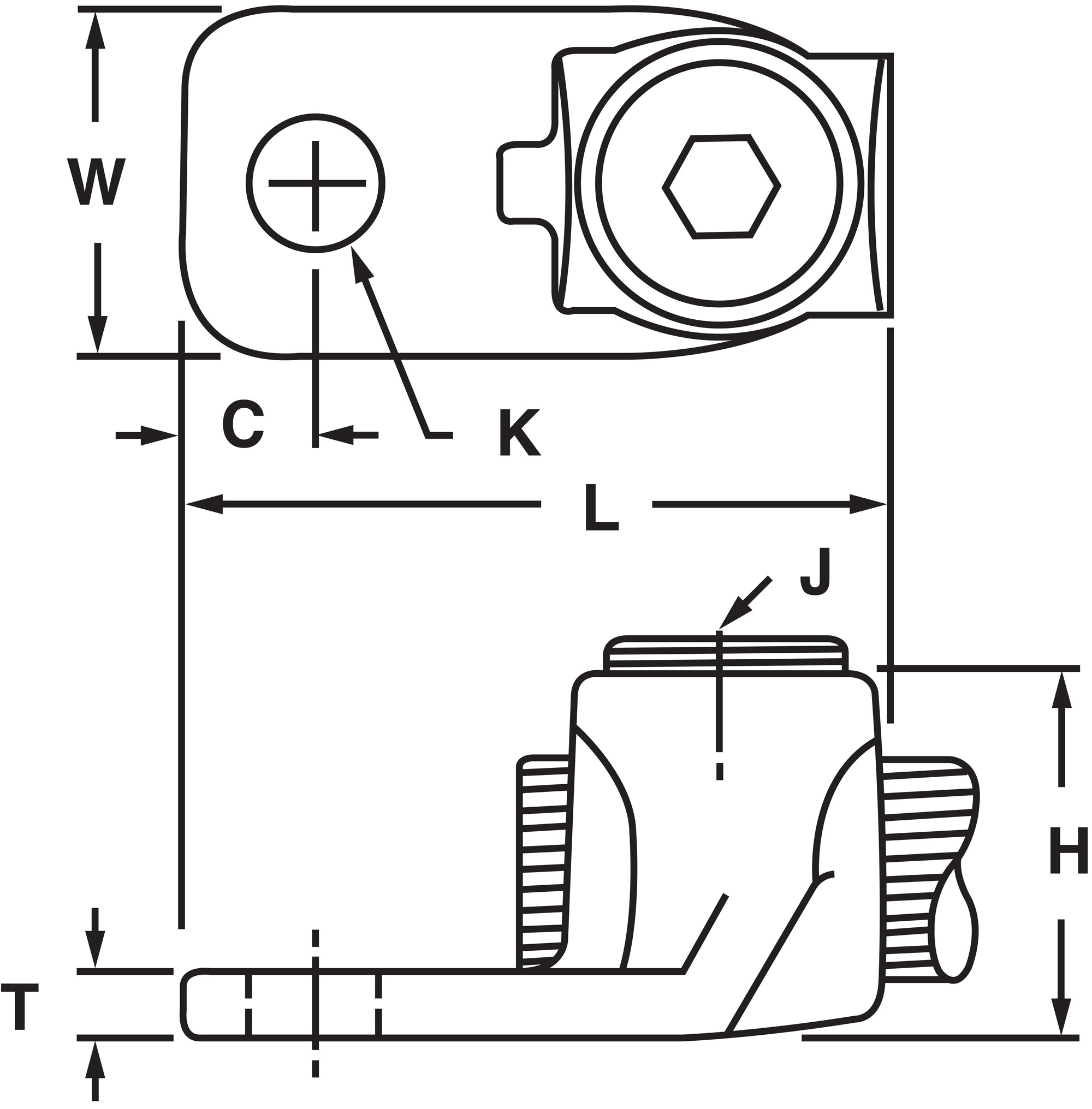

Conductor Range8 Sol. - 1/0 Str.
C (in.)0.38
K (in.)0.33
H (in.)0.78
L (in.)1.59
T (in.)0.14
W (in.)0.73
J - Screw Thread1/2"-20
Hex Size1/4"
