PS-4020
|

PS-4020

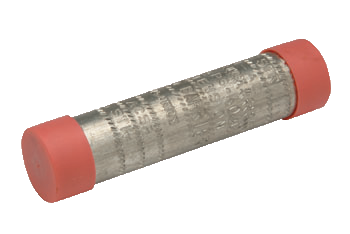

Aluminum Service Entrance Sleeve 4/0 AWG, 4/0 ACSR (A Range)

  • Forged from pure aluminum with integral solid center barrier
  • For combinations of copper, aluminum, and ACSR
  • Designed for service entrance and non-tension loop splice applications
  • Solid center barrier allows for proper conductor insertion and eliminates the effects of galvanic corrosion in aluminum to copper connections
  • Installed with standard dies in either hand or hydraulic tools
  • Easy push-thru polyethylene color coded caps seal out contaminants
  • Connectors are pre-filled with oxide inhibitor to keep air and moisture out
  • Conforms to ANSI C 119.4 when properly installed
A Range- ACSR4/0 6/1
A Range- AL or CU Stranded4/0
A Range- Cap ColorPink
B Range- ACSR2/0
B Range- AL or CU Stranded2/0
B Range- AL or CU Solid–
B Range- Cap ColorGray
No. of Crimps on Each End- Hand7
No. of Crimps on Each End- HYD.4
Die Size.840
249

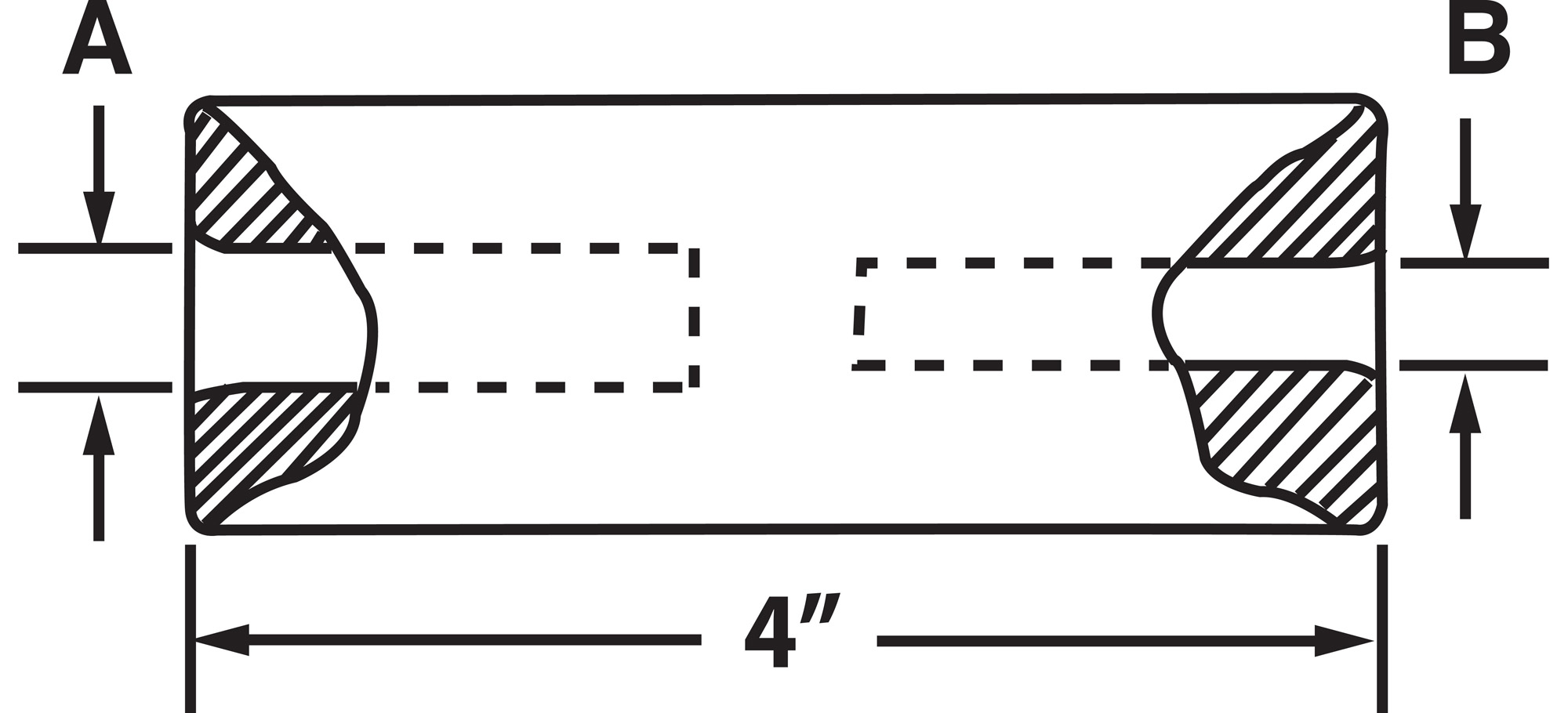

Download Drawing Here
