RA-03-2B
|

RA-03-2B

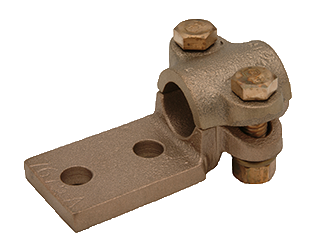

Bronze Terminal for Copper Tube - Flat 3/8"

  • Manufactured from high strength cast copper alloy
  • Furnished with silicon bronze bolts, nuts, and lock washers for corrosion resistance
  • Side-formed contact surface is standard to allow clearance for flush mounting
  • Drilling in pad conforms to NEMA standards for 1/2” hardware
  • Two-hole pad drilling accommodates 3/8″ hardware
  • For tin plating, suffix the catalog number with “-TN”
W (in.)1.38
A (in.)1.00
C (in.)0.44
D (in.)1.38
E (in.)2.00
F (in.)0.44
T (in.)0.25
G (in.)0.88
Bolt Size3/8"
