RA-20-E
|

RA-20-E

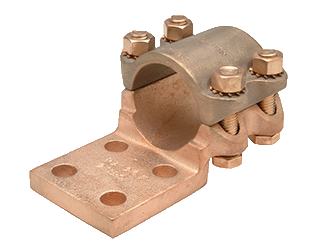

Bronze Terminal for Copper Tube - Flat 2-1/2"

  • Manufactured from high strength cast copper alloy
  • Furnished with silicon bronze bolts, nuts, and lock washers for corrosion resistance
  • Side-formed contact surface is standard to allow clearance for flush mounting
  • Drilling in pad conforms to NEMA standards for 1/2” hardware
  • For tin plating, suffix the catalog number with “-TN”

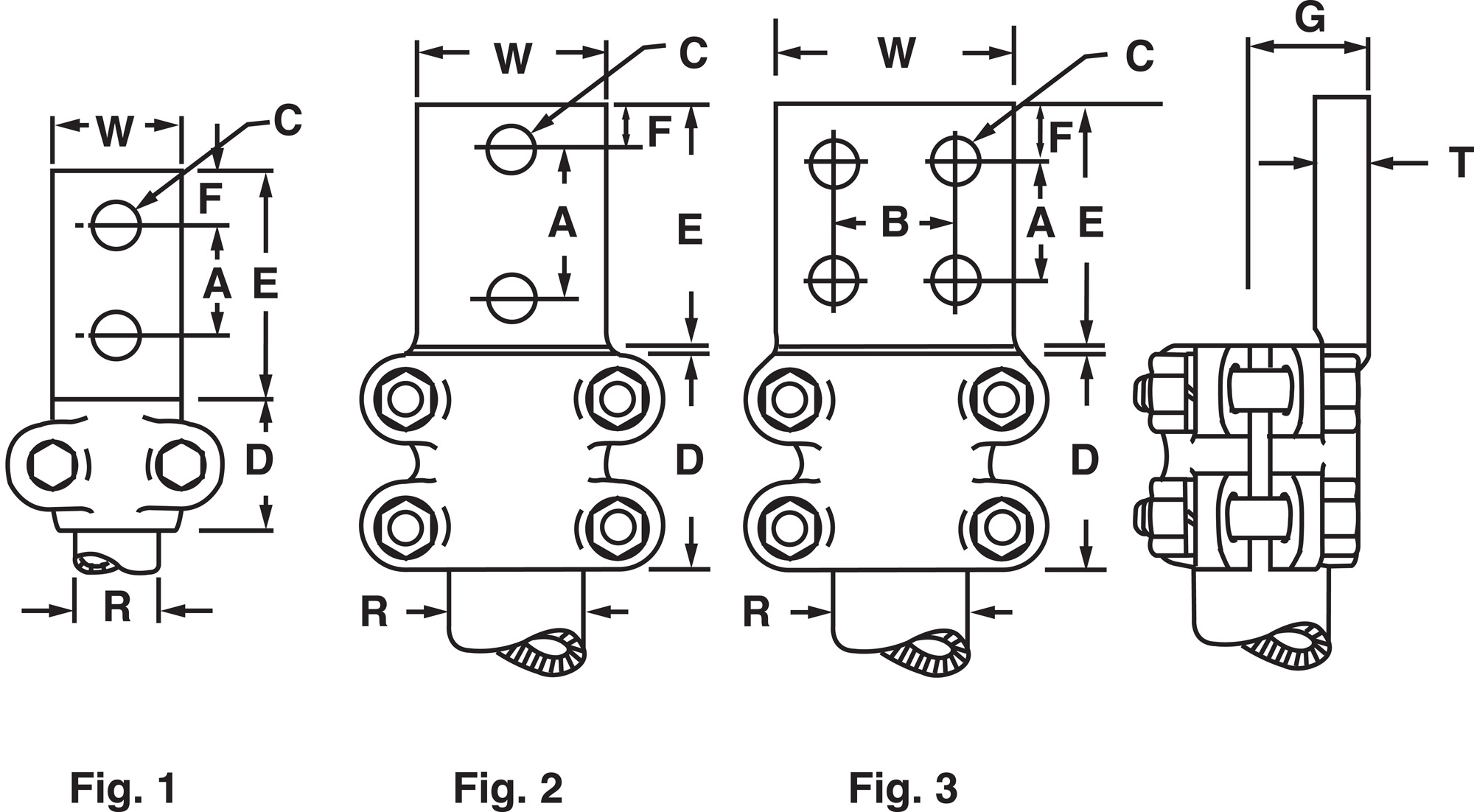

W (in.)4.00
A (in.)1.75
B (in.)1.75
C (in.)0.56
D (in.)2.75
E (in.)4.00
F (in.)1.13
T (in.)0.44
G (in.)1.63
Bolt Size1/2"
