RAA-25-F
|

RAA-25-F

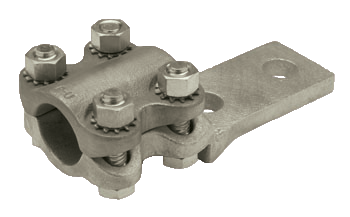

Aluminum Terminal foruminum Tube - Flat 2 1/2"

  • Manufactured from high strength cast aluminum alloy
  • Clamping hardware is of high strength, anodized and lubricated 2024-T4 aluminum alloy
  • Side-formed contact surface is standard to allow clearance for flush mounting
  • Oxide inhibitor recommended on contact surfaces
  • Reversible cap allows for expanded conductor range
  • Captive bolt head design permits single wrench installation
  • Drilling in pads conforms to NEMA standards for 1/2” hardware
  • Special drilling is available upon request
  • If copper flashed pad is preferred on tongue, prefix the catalog number with “RAAC” in place of “RAA”
  • For tin plating, suffix the catalog number with “-TN”
  • For tongue mounting hardware, suffix the catalog number with “-TMH”
G (in.)2.19
L (in.)8.00
M (in.)4.75
T (in.)0.63
W (in.)5.13
Bolt Size3/4"
