RAR-025-DH

Bronze Terminal for One Copper Cable - Flat 6 AWG - 1 AWG

RAR-025-DH quantity

Description
Specifications
Downloads

Manufactured from high strength cast copper alloy
Furnished with silicon bronze bolts, nuts, and lock washers for corrosion resistance’
Reversible cap allows for expanded conductor range
Side-formed contact surface is standard to allow clearance for flush mounting
Drilling in pads conforms to NEMA standards for 1/2 hardware
For tin plating, suffix the catalog number with -TN

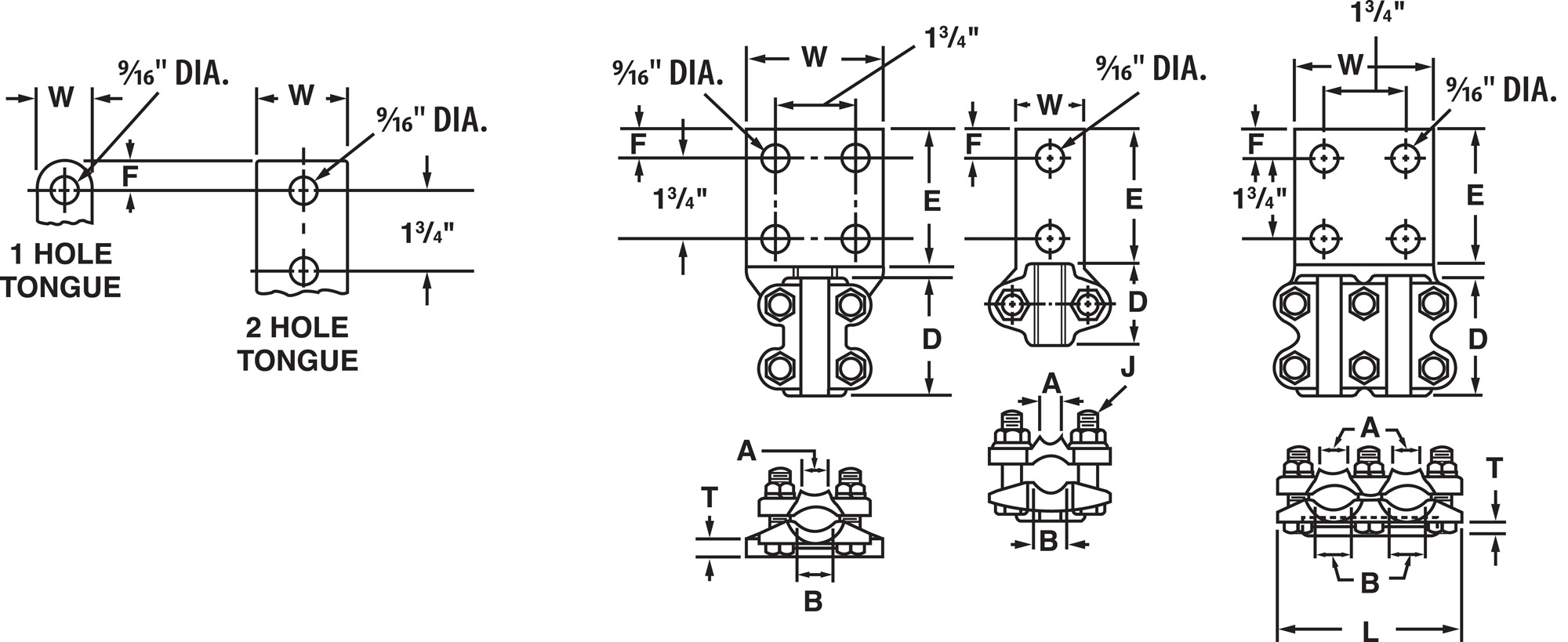

D (in.)	2.50
E (in.)	3.00
F (in.)	0.63
T (in.)	0.25
W (in.)	1.50
Bolt Size	1/2"

Download Drawing Here

No Downloads Found

Penn-Union
229 Waterford Street | Edinboro, PA 16412

(814) 734-1631 | Contact Us
