S-1/0
| | |

S-1/0

Copper Split Bolt Connector for Two Conductors - 4 AWG - 1/0 AWG (Equal Main & Tap)

  • Manufactured from high strength copper alloy – highly resistant to corrosion and season cracking
  • For use with a wide range of copper solid, compact, compressed, concentric, copper weld conductors, and rebar
  • Approved for electrical power, grounding/bonding, and direct burial applications
  • True hex design allows easy installation with standard tooling
  • Under torque, this design provides high contact pressure between conductors or conductor to rebar
  • Pressure bar design assures high “pull-out” and secure connection on all combinations of conductors
  • Wide wire range
  • Rated for copper conductors, 600 V, 90°C
  • Use with torque wrench, standard socket, box or open-end wrenches
  • Reusable with proper installation practice
  • RUS REA accepted

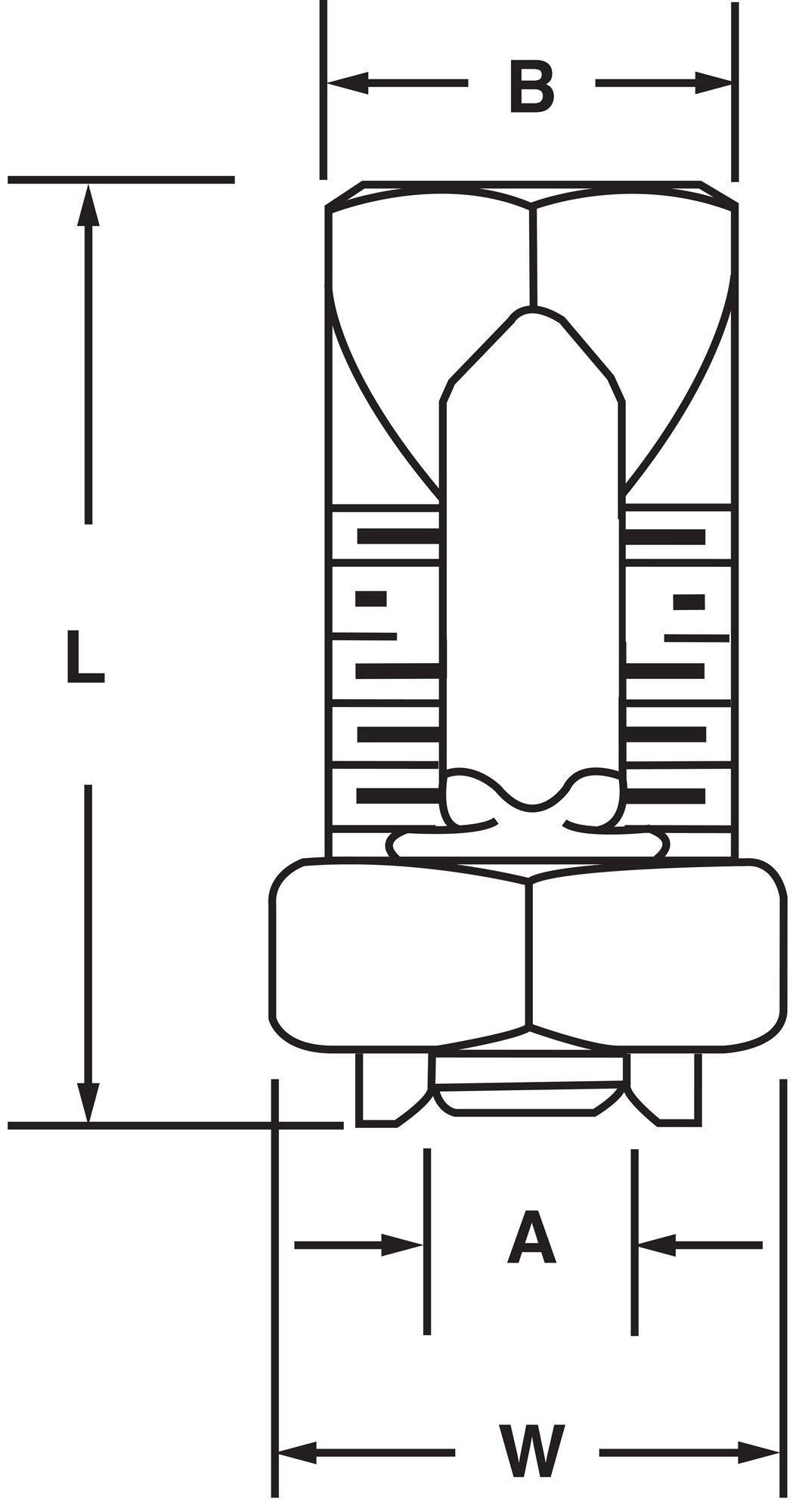

L (in.)1.64
W (in.)0.88
B (in.)0.75
A (in.)0.38
Torque (in.-lbs.)385
