SW-14
|

SW-14

Copper Split Bolt Connector - 350 kcmil - 1000 kcmil (Equal Main & Tap)

  • Manufactured from high strength copper alloy – highly resistant to corrosion and season cracking
  • For copper to copper; can be used on aluminum conductor, but are not UL Listed for that application
  • True hex design allows easy installation with standard tooling
  • Design provides, under torque, high contact pressure between conductors
  • Electro-tin plated bolt, nut, spacer, and pressure bar
  • Use of an oxide inhibiting compound is recommended with this connector

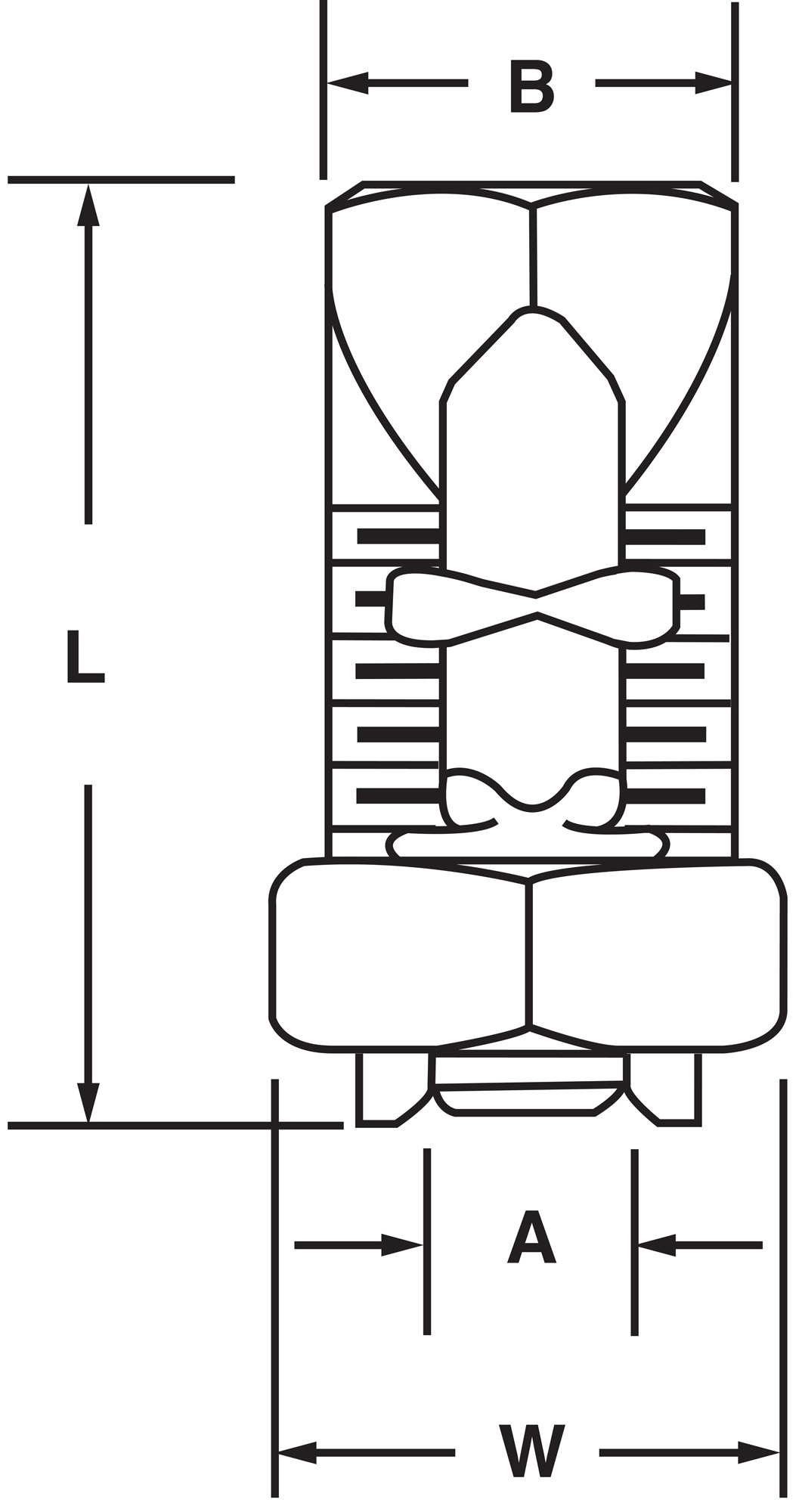

L (in.)4.00
W (in.)2.50
B (in.)2.25
A (in.)1.22
Torque (in.-lbs.)1100
