UPC-3
|

UPC-3

Bronze Universal Parallel Clamp 2 AWG - 300 kcmil

  • Manufactured from high strength copper alloy
  • For copper conductors
  • Designed for tap and parallel connections
  • Connectors accommodate a large range of wires or cables in either groove
  • Furnished with silicon bronze carriage bolts, nuts and lock washers for single wrench installation
  • Long contact surfaces and interlocking fingers provide excellent conductor contact and mechanical performance
  • For use with aluminum conductors, add suffix “-TN” to the catalog number for tin plating
H (in.)2.25
L (in.)2.38
W (in.)2.00
Bolt Size3/8"

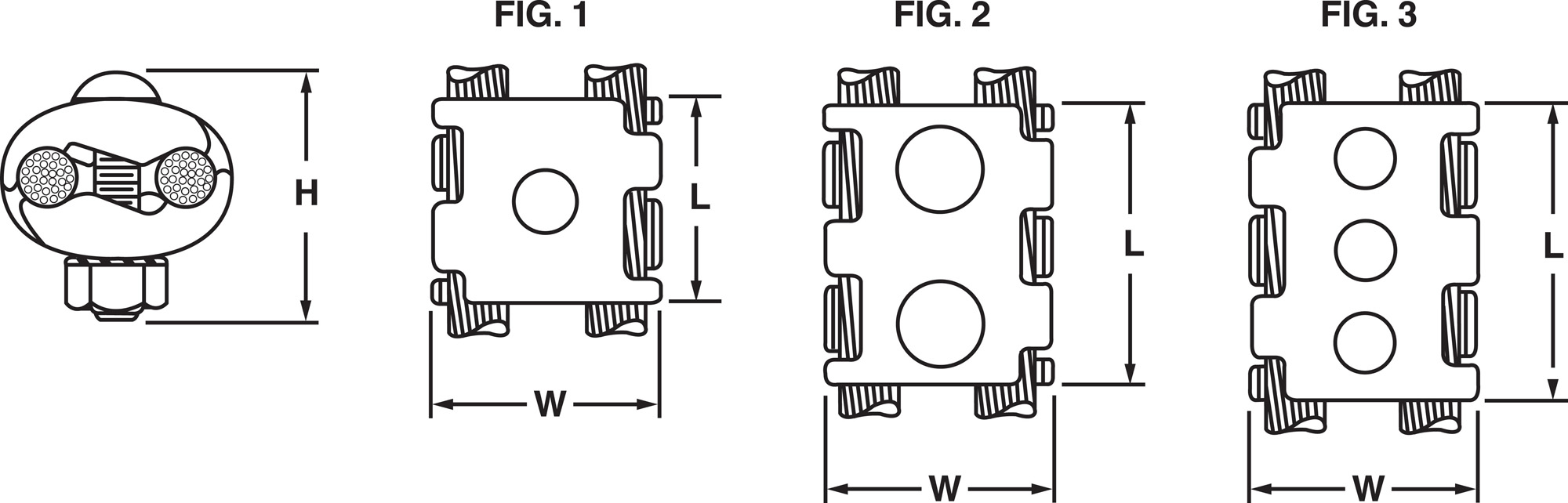

Download Drawing Here

No Downloads Found
