UTS-0316-2
|

UTS-0316-2

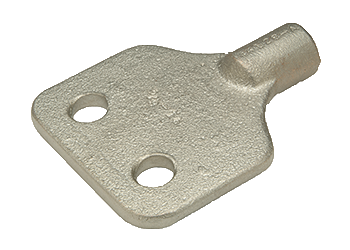

Tinned Bronze Tranformer Spade Terminal 3/8"-16 Stud Thread Size

  • Manufactured from high copper content alloy and electro-tin plated
  • For use with aluminum or copper compression or bolted type lugs
  • Terminal lug mounting holes are 9/16” diameter with 1-3/4” NEMA spacing
  • Can be supplied with studs bonded to terminal by adding suffix “-S” to the catalog number
  • Can be supplied with one (1) ea. stud-locking set screw by adding suffix “-SS” to catalog the number
B (in.)0.88
C (in.)0.63
D (in.)2.38
L (in.)4.00
T (in.)0.25
W (in.)3.50
