UTS-0611-4L
|

UTS-0611-4L

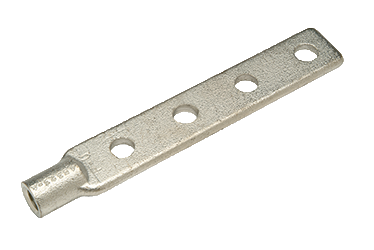

Tinned Bronze Tranformer Spade Terminal 5/8"-11 Stud Thread Size

  • Manufactured from high copper content alloy and electro-tin plated
  • For use with aluminum or copper compression or bolted type lugs
  • Terminal lug mounting holes are 9/16” diameter with 1-3/4” NEMA spacing
  • Can be supplied with studs bonded to terminal by adding suffix “-S” to the catalog number
  • Can be supplied with one (1) ea. stud-locking set screw by adding suffix “-SS” to catalog the number
B (in.)0.88
C (in.)0.75
D (in.)7.00
L (in.)8.38
T (in.)0.31
W (in.)1.38
