UTS-1014-8
|

UTS-1014-8

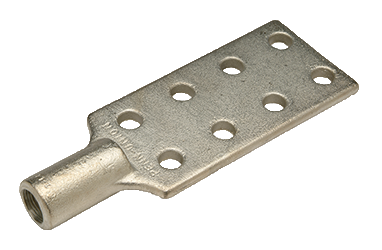

Tinned Bronze Tranformer Spade Terminal 1"-14 Stud Thread Size

  • Manufactured from high copper content alloy and electro-tin plated
  • For use with aluminum or copper compression or bolted type lugs
  • Terminal lug mounting holes are 9/16” diameter with 1-3/4” NEMA spacing
  • Can be supplied with studs bonded to terminal by adding suffix “-S” to the catalog number
  • Can be supplied with two (2) ea. stud-locking set screws by adding suffix “-SS” to catalog the number
B (in.)1.38
C (in.)0.63
D (in.)6.88
L (in.)9.44
T (in.)0.38
W (in.)3.50
