VTA-2
|

VTA-2

Bronze Heavy-Duty Parallel Clamp - 1/0 AWG - 4/0 AWG

  • Manufactured from high strength bronze castings with high conductivity spacer bar
  • All parts are tin plated
  • Rubber retaining washer eliminates loose parts
  • UL listed for copper to copper applications
    • NOTE: Can be used on aluminum conductors, but is not UL listed for such application

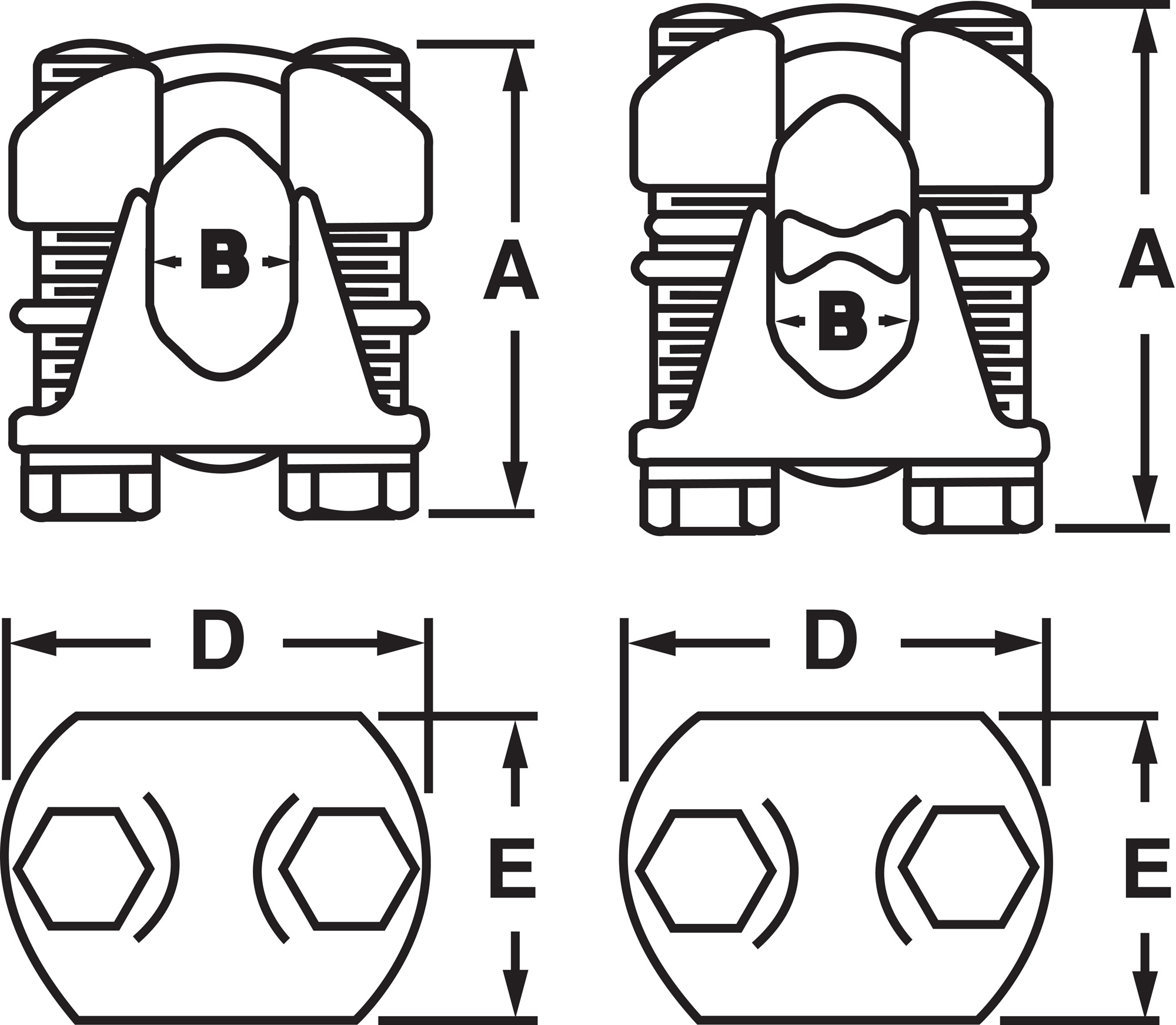

A - Bolt Length1.75
B (in.)0.59
D (in.)1.84
E (in.)1.34
Bolt Size3/8
Download Drawing Here
